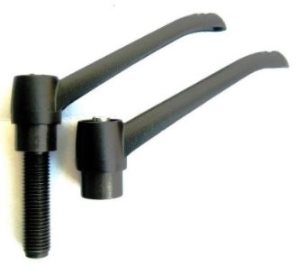

Adjustable clamp lever can be used in any machine fixture or attachment where manual clamping is provided.

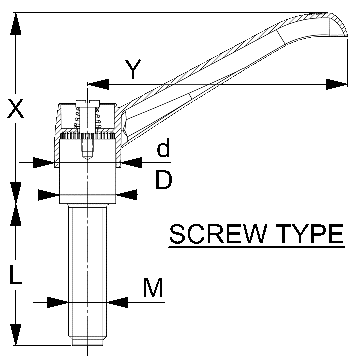

The lever often reaches an inconvenient position in the clamped condition making it difficult to clamp properly and effectively. In several applications the lever cannot be rotated through full circle. The adjustable clamp lever assembly overcomes these problems since the lever and the bolt are two separate parts locked by male and female serrations. The lever can be lifted up, rotated to the desired positions and engaged just by releasing. These assemblies are made in both Nut type (N) and Screw type (S). (~) column in the table indicates the number of indexable steps. The lever is pressure die cast zinc alloy and is painted black. The bolt is of high tensile steel, blackened.
These assemblies are specified by indicating the size (M), type (N or S) and the quantity as for instance : M8S -90Nos. Right to alter specifications reserved.
